◇ 3D VIEW
Drag to rotate · Scroll or pinch to zoom

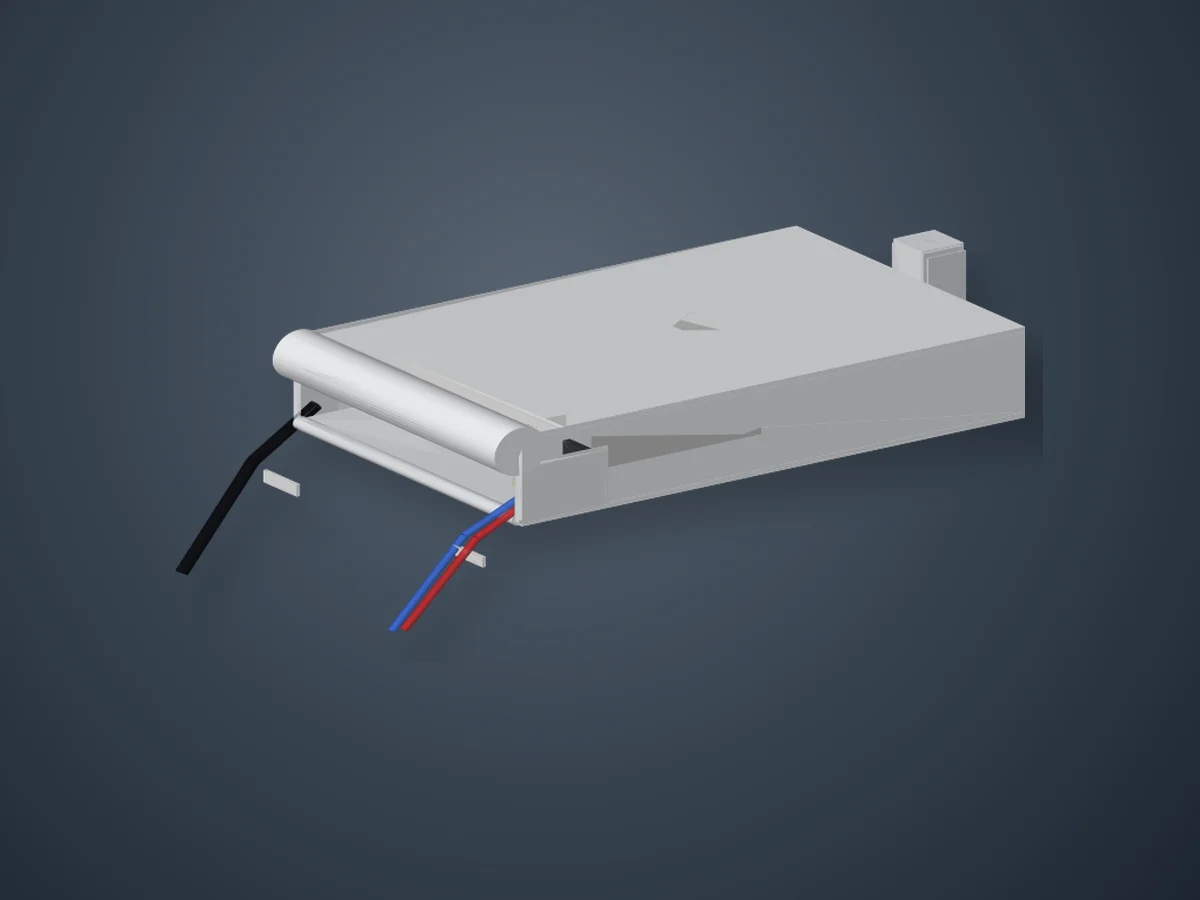

INTERACTIVE PRODUCT MODEL
TODAAIR PRODUCT V3.0
P/N: TD-3D-DEMO-V3
1259 Views
Features
- Interactive 360° product inspection in the browser
- Four RJ45 interface structures visible in the model
- Independent DC input and terminal-block details
- Rear mounting bracket and enclosure structure
- Responsive desktop and mobile touch controls
PRODUCT OVERVIEW
Inspect every side of the product
The main product image has been replaced with a real-time 3D viewer while retaining the visual structure of the Todaair product detail page.
01
Rotate freely
Drag with a mouse or one finger to inspect the enclosure, ports, bracket and cable details.
02
Zoom precisely
Use the mouse wheel or a two-finger pinch gesture to examine smaller structures.
03
Optimized loading
A lightweight poster is shown first, then the 681 KB GLB loads with progress feedback.
MODEL PARAMETERS
3D asset information
Asset formatBinary glTF (.glb)
glTF version2.0
File size697,056 bytes
Geometry106 meshes / 3,582 triangles
Approx. model bounds147 × 296 × 122 model units
Viewer runtime<model-viewer> 4.3.1

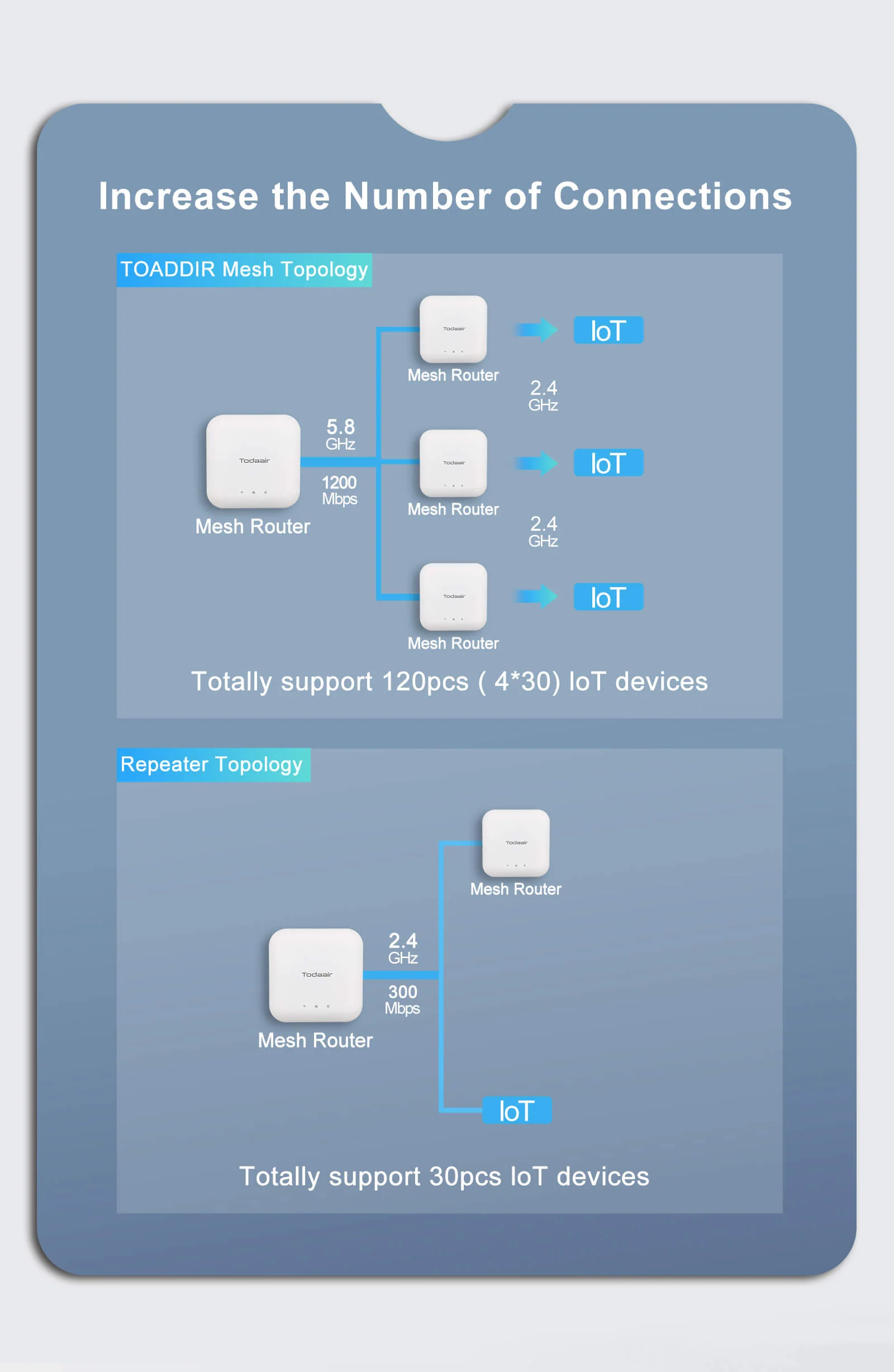

TOPOLOGY
Example product application
☁Cloud
◇Todaair Device
▣IP Camera
⌁Wireless AP
▤Controller
INSTRUCTION
How to use the 3D viewer
- Rotate: drag the model horizontally or vertically.
- Zoom: scroll with the mouse wheel or pinch on a touch screen.
- Pause: use the Auto button to pause or resume automatic rotation.
- Recover: use Reset to return to the recommended camera angle.
- Expand: use Full to open the viewer in fullscreen mode.
VIDEO
Product video area
This block is ready for an MP4 file, YouTube embed or factory demonstration video.
ACCESSORIES
Related accessories
DC
Power Adapter
Placeholder accessory card
RJ45
Network Cable
Placeholder accessory card
KIT
Mounting Kit
Placeholder accessory card
DOWNLOADS
Product resources
Q & A
Frequently asked questions
Can this page be uploaded directly to Cloudflare Drop?
Yes. The package is a static site with index.html at the ZIP root and all scripts, styles and model files stored locally.
Does the viewer work on mobile phones?
Yes. The layout becomes a single column and the model supports touch rotation and pinch zoom.
Can the product name and specifications be changed?
Yes. Edit the marked product-summary section in index.html. The visual styling is controlled in css/style.css.
